*Low start up speed for different wind speed areas, high wind energy utilization.
*Easy installation, flange connection.
*Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
*Body of casting aluminum alloy, making it survive stronger wind and run more safely.
*Patented permanent magnet ac generator, effectively reduce torque, well match the wind baldes and generator, ensure the high performance of whole system.

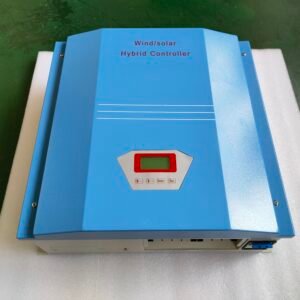

*Controller, inverter and battery can be matched according to customers’ specific needs.
| 型号Model | JS-G-20K | JS-G-30K |
| 额定功率 Ratedpower | 20KW | 30KW |
| 额定电压 Rated voltage | 220V/240V/380V | |
| 启动风速 Start the wind speed | 2.5m/s | |
| 额定风速 Rated wind speed | 11m/s | |
| 安全风速 Safe wind speed | ≤45m/s | |
| 风轮直径 Fan blade diameter | 9.5m | 12m |
| 叶片数量 Number of blades | 3 | |
| 叶片材质 Blade material | 增强玻璃钢 Reinforced FRP | |
| 机身材质 Fuselage material | 增强压铸铝 Reinforced die-cast aluminum+钢材steel | |
| 磁钢材料 Magnetic steel material | 钕铁硼NdFeB | |
| 发电机类型 Generator type | 三相交流永磁同步发电机 Three-phase AC permanent magnet synchronous generator | |
| 控制方式 Control mode | 电磁刹车 Electromagnetic brakes | |
| 风向调整 Wind direction adjustment | 自动调整迎风角度 Automatically adjusts the windward angle | |
| 寿命Service life/ 防护等级Degree of protection | ≥20 years/ IP54 | |
| 净重/毛重 Net weight/gross weight | 680kg/800kg | |
| 包装尺寸 Packing size | 125*74*66+145 90*6+460*60*70cm | |
