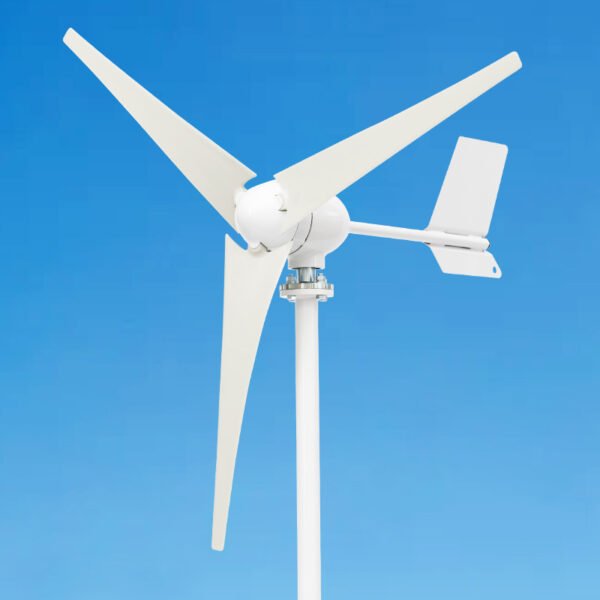

*Low start up speed for different wind speed areas, high wind energy utilization.
*Easy installation, flange connectio.
*Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
*Body of casting aluminum alloy, making it survive stronger wind and run more safely.
*Patented permanent magnet ac generator, effectively reduce torque, well match the wind baldes and generator, ensure the high performance of whole system.
*Controller, inverter and battery can be matched according to customers’ specific needs.
| 型号Model | JS-L1-1000 | JS-L1-1500 | JS-L1-2000 |
| 额定功率 Rated power | 1000W | 1500W | 2000W |
| 额定电压 Rated voltage | 48V/96V/120V/220V/240V | ||
| 启动风速 Start the wind speed | 2m/s | ||
| 额定风速 Rated wind speed | 11m/s | ||
| 安全风速 Safe wind speed | ≤50m/s | ||
| 风轮直径 Fan blade diameter | 2.6m | 2.9m | 3.1m/3.2m |
| 叶片数量 Number of blades | 3 | ||
| 叶片材质 Blade material | 增强玻璃钢ReinforcedFRP | ||
| 机身材质 Fuselage material | 增强压铸铝Reinforceddie-castaluminum | ||
| 磁钢材料 Magnetic steel material | 钕铁硼NdFeB | ||
| 发电机类型 Generator type | 三相交流永磁同步发电机 Three-phase AC permanent magnet synchronous generator | ||
| 控制方式 Control mode | 电磁刹车Electromagnetic brakes | ||
| 风向调整 Wind direction adjustment | 自动调整迎风角度Automatically adjusts the windward angle | ||
| 寿命Servicelife/ 防护等级Degree of protection | ≥20years/ IP54 | ||
| 净重/毛重 Net weight/gross weight | 48kg/52kg | 53kg/57kg | 58kg/62kg |
| 包装尺寸 Packing size | 67*48*26cm 130*27*27cm | 67*48*26cm 147*27*27cm | 67*48*26cm 162*27*27cm |
