Residential Use 3KW Wind Solar Hybrid Controller for Wind Solar Hybrid Power System

Can be applied to wind&solar hybrid off-grid system
Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.
RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth/RJ45 connection)

Applications

Independent wind power plant
Independent household wind power generation system
Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.

3KW
Model	WWS30-48	WWS30-120
Wind Turbine Input
Rated input power	3kW
Rated input voltage	48Vdc	120Vdc
Input voltage range	0~64Vdc	0~160Vdc
Rated input current	63Adc	25Adc
Brake by hand	Press button “Enter” “Esc” at the same time to unload completely. Then recover by hand.
Brake by over current	63A (factory default, 0~63A settable) unload completely when reached the set current, and recover automatically after working 10mins.	25A (factory default, 0~25A settable) unload completely when reached the set current, and recover automatically after working 10mins.
Brake by overvoltage	Refer to “output overvoltage” control
Brake by over wind speed	Optional
Brake by over rotational Speed	Optional
PV Input (optional)
Rated input power	900W
Max. Open circuit voltage	96Vdc	240Vdc
Rated input current	19Adc	8Adc
Reversed connection protection	YES
Charge Parameters (optional)
Rated battery voltage	48Vdc	120Vdc
Temperature compensation function (optional)	-3mV/℃/2V
Output Parameters
Rated output voltage	48Vdc	120Vdc
Output overvoltage point	58Vdc	145Vdc
Output overvoltage recovery point	Less than output overvoltage
Max. Output current	63Adc	25Adc
General Parameters
Rectifier mode	Uncontrolled rectifier
Display mode	LCD
Display information	DC output voltage, wind turbine voltage/current/power/battery voltage and PV power/voltage/current
Monitoring mode (optional)	RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee
Monitoring Contents	Real-time display:DC output voltage, wind turbine voltage/current/power/battery voltage and PV power/voltage/current Parameter setting: Output overvoltage point, wind turbine over current point, and wind turbine brake settings.
Lightning protection	YES
Conversion efficiency	≥95%
Static loss	＜5W	＜7W
Ambient temperature	-20℃～+40℃
Humidity	5%~95%, No condensing
Noise	≤65dB
Cooling mode	Natural cooling
Installation mode	Wall-mounted
Cover protection class	IP20
Product dimension (WHD)	440×305×170 mm
Product net weight	7.5kG
Dump load dimension(WHD)	400×390×210mm
Dump load weight	13.5kG
Note: the listed specs are just for your reference

Can be applied to wind&solar hybrid off-grid system

Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.

RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth/RJ45 connection)

Applications

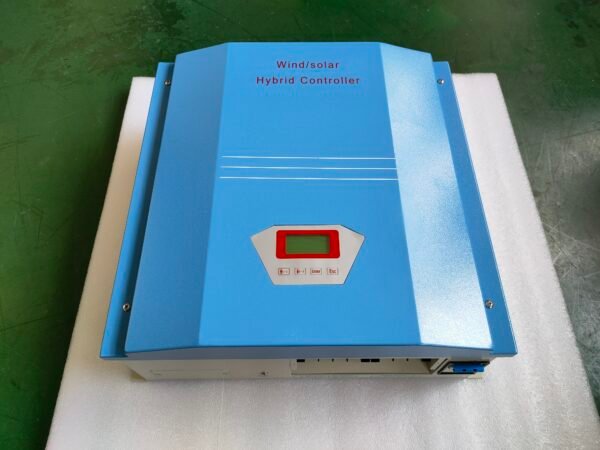

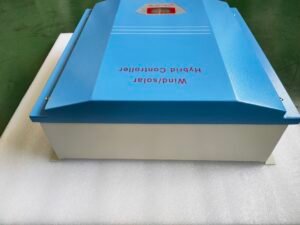

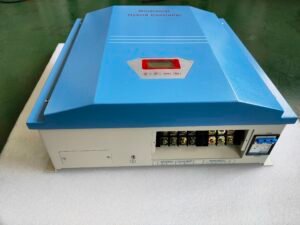

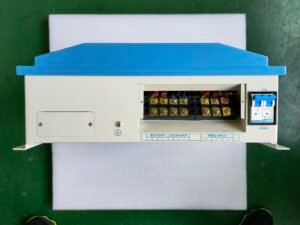

Controller Shows
